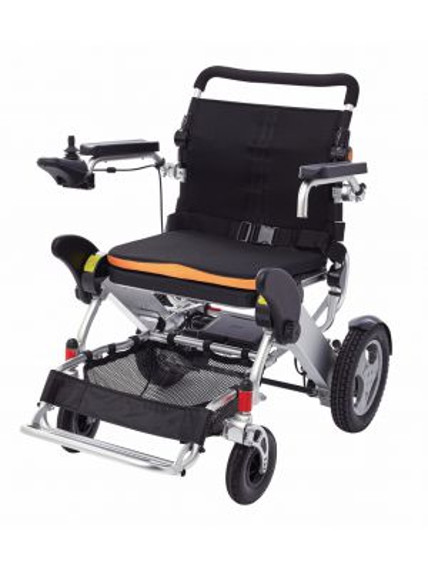

DLX Folding Electric Wheelchair (12 inch wheels)
Details
The CH4085 DLX EZee Fold power wheelchair is part of our “top of the line” Deluxe lightweight folding wheelchairs.
The CH4085 DLX has 8” front casters with suspension forks and 12” rear wheels. It is designed for those who want a high quality folding power wheelchair for use indoors and outdoor surfaces.
It's 21 km range will provide all day independent mobility for even the most active users. Range is dependent on terrain travelled, age and condition of batteries and load weight on wheelchair.
Specifications
| Metric | Imperial | |
| Seat Width: | 44.8 cm | 18” |
| Seat Depth: | 42 cm | 16.5” |
| Seat Height: | 55 cm | 21.7” |
| Back height: | 50 cm | 19.7” |
| Arm height: | 24 cm | 9.4" |
| Arm length: | 35 cm | 13.8" |
| Foot rest length range: | 48 - 50 cm | 18.9" - 19.7" |
| ELR length range: | 55 - 126 cm | 21.7" - 49.6" |
| Weight of removable leg rests: | 4.96 kg | 10.9 lb |
| Removable leg rests hanger angle: | 35°-95° | 35°-95° |
| Wheelbase length: | 51cm | 20" |
| Turning Radius: | 100cm | 39.3" |
| Wheel size: | 30.5 cm | 12” |
| Caster size: | 20.3 cm | 8” |
| Weight Capacity: | 150 kg | 330 lb |
| Frame Material: | aluminum alloy | aluminum alloy |
| Suspension: | frog leg forks | frog leg forks |
| Weight of chair: | 33 kg | 72.6 lb |
| Batteries: | 12 v x 2 – 16 AH Lithium | 12 v x 2 – 16 AH Lithium |
| Overall size: | 105 x 69 x 99 cm | 41.3” x 27.2” x 39” |
| Folded Size: | 44 x 69 x 84 cm | 17.3” x 27.2” x 33” |
| Max. Speed: | 6 km/h | 6 km/h |
| Max. Climbing Grade: | 12° | 12° |
| Charge time: | 8h-10h | 8h-10h |
| Range: | 21 km | 13.1 miles |
| Box size: | 74.5 x 47.5 x 93 cm | 29.3" x 18.7" x 36.6" |
| Weight in box: | 37 kg | 81.6 lb |
*Speed and Range are dependent on the weight of the user, condition of the batteries and terrain travelled. Weights & measurements are approximate.
Features
- Ultra Lightweight (33 kg)
- 150 kg Weight capacity
- 24 V Brushless motors
- Easy to fold
- 4 Position Adjustable backrest
- Adjustable leg guard
- Anti-Tippers
- Removable Seat Cushion
- Seat Belt
- Storage Pouch
- 8” front caster with suspension
- Adjustable 1 piece footrest
- Custom designed travel case
- Optional Swing away footrests
- 21 KM Range
For more information, see the manufacturer's website at the link below.
