Details

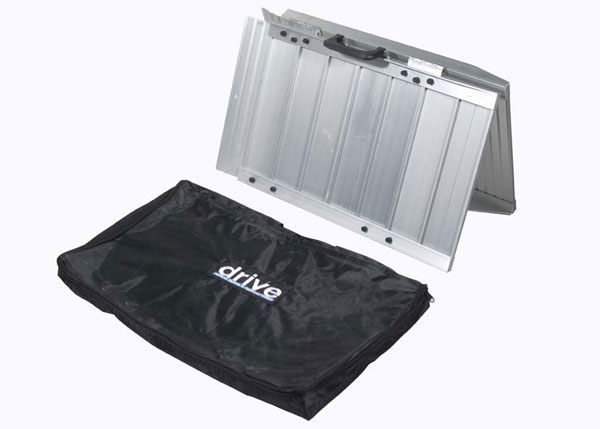

FEATURES: Designed to transition wheelchair or scooterfrom one surface height to another.

Durable, lightweight construction. Comes with carry bag.

Perforated slots keep waterform collecting on ramp.

Variety of sizes to meetmany elevation changes.

Weight capacity: 600 lbs.

Limited Lifetime Warranty.

Ramp Weight 2' - 14 lbs 3' 20 lbs 4' 27 lbs 5' 34 lbs 6' 38 lbs.

HANDICAP ACCESS RAMP - HOW TO DETERMINE THE CORRECT LENGTH Your Drive owner's manual will determine how much of an incline your power wheelchair or scooter can climb. For a straight incline, measure the distance from the incline origin to the highest point. Measure the total width of the area you plan to place the ramp. Note that the ramp will need to be smaller than the total width in order to fit.

Measure the total vertical climb (straight up and down) that you plan to go up. Use these measurements to find the length of the ramp required In accordance with the ADA requirements.

Take a look at the link provided to access ramp chart providing recommended lenths for the height of the step.

https://www.drivemedical.com/catalog/specimages/STDS1093_Spec.pdf
